3,5" Panel-SPS -V ohne Peripherie

Da muss man zweimal hinsehen: Ein kleines 3,5″-Touchpanel und eine S7-SPS sehr kompakt gebaut. Die externe Peripherie wird über die vielen Schnittstellen angesprochen. Oft als Einsteigermodell oder für Zusatzanzeige- und Bediengeräte im S7-Steuerungsverbund verwendet. Neben dem ordentlichen Arbeitsspeicher (512/640kB) favorisieren die Schnittstellen Ethernet (S7-Kommunikation, TCP, UDP), Modbus (-TCP und -RTU, CAN (CANopen und Layer2), RS232 und RS485 (freies ASCII) und optional Profibus DP V0 (-Master und -Slave) das Gerät für einen Einsatz als als Datenlogger oder Gateway mit Datenvorverarbeitung.

S7-Panel-SPS 3,5″ mit fixer Onboardperipherie

Willkommen bei den kleinsten S7-Touchpanel-SPS mit Onboard-Peripherie der Welt! 4 digitale und 2 analoge Ein- oder Ausgänge verstecken sich unter dem kompaktem Rückblech. Mehr sind natürlich dezentral möglich. Das brillante Bild und extrem kompakte Abmessungen favorisieren diese Geräte für Kleinlösungen, die aber Leistungsriesen sein können. Mit nur 50mm Bautiefe ultrakompakt und trotzdem mit Ethernet (S7-Kommunikation, TCP und UDP), Modbus (-TCP und -RTU), CAN (CANopen und Layer2) sowie RS232 und RS485 (freies ASCII) und optional Profibus DP V0-Master und -Slave ist das Gerät ein wahres Kommunikationswunder.

S7-Panel-SPS 3,5″ für modulare Onboardperipherie

Wer viel Peripherie modular auf engstem Raum ansprechen will, ist mit dieser nur 89mm tiefen S7-Panel-SPS bestens bedient. Denn bis zu 48digitale oder 30 analoge Ein-oder Ausgänge passen unter das hochwertig verarbeitete Rückblech. Diese Lösung ersetzt oft die in die Jahre gekommenen C7-Geräte und gibt Maschinen ein zweites Leben. Durch den großen Arbeitsspeicher (512/640kB) und die vielen Schnittstellen wie Ethernet (S7-Kommunikation, TCP und UDP), Modbus (-TCP und -RTU, CAN (CANopen und Layer2) sowie RS232 und RS485 (freies ASCII) und optional Profibus DP V0-Master und -Slave sind diese Geräte als Datenlogger, BDE-Geräte und Gateways mit S7-programmierbarer Datenvorverarbeitung favorisiert.

26mm installation depth for an S7 panel PLC – world record! S7 power dwarfs with a brilliant and very fast touch display with 480x272px. And always S7 programmable with the well-known Siemens tools SimaticManager and TIA Portal. If you need CPU performance and memory and don't have to display much, you've found your S7 controller here. Whether as a stand-alone device or additional display and operating devices in the S7 control network. In two versions: 26mm installation depth without and 45mm installation depth with Profinet. Both have 2 separate Ethernet (S7 communication Put/Get, TCP, UDP), Modbus -TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). A 4-way VNC server is also included.

S7 panel PLC 4.3″ flat – with fixed peripherals

If you expand the world's most compact S7 touch panel PLC with a peripheral board, the result is another world record!
Die INSEVIS-Ingenieure haben in 17 weiteren Millimetern ungaubliche 12 digitale EAs (natürlich umschaltbar, PWM und PushPull), 12 zählende digitale Eingänge, 3 Analogkanäle (einzeln als Ein- oder Ausgang und jeweils für Strom oder Spannung) und 3 analoge Eingänge für Strom oder Spannung oder RTD oder Thermoelement oder für Dehnmessstreifen) untergebracht, RESPECT! Natürlich sind die Schnittstellen geblieben: 2 getrennte Ethernet (S7-Kommunikation-Put/Get, TCP, UDP), Modbus -TCP und -RTU), CAN (CANopen und Layer2), RS232 und RS485 (freies ASCII). Ein 4-fach VNC-Server ist ebenfalls bereits enthalten.

S7 panel PLC 4.3″ for modular onboard peripherals

Designed for use in the tightest of spaces: the PC433T, which is less than 90mm deep and can also accommodate up to 48 digital or 30 analog inputs or outputs. It can be installed horizontally or vertically, with the connector level inclined towards the cable duct. Field devices are addressed via the onboard interfaces Modbus-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into separate networks. The brilliant and extremely fast touch displays can be used horizontally and vertically, there are no restrictions on visualization or remote access. A 4-way VNC server is also included.

S7 panel PLC 5.7″ flat – without onboard peripherals

If you miss the well-known TP/MP170 panel format, this module is not only a replacement, but it also has the S7 CPU integrated! And a very powerful one with a large working, loading and visualization memory and a good number of interfaces: Ethernet (S7 communication, TCP and UDP), Modbus (TCP and RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optionally Profibus DP V0 master and slave. This is why this small panel PLC is a true communications miracle. Decentralized peripherals, communication with control systems, remote visualization, everything is easy to configure and parameterize.

S7 panel PLC 5.7″ for modular onboard peripherals

Workhorse, bread and butter control, performance miracle. No other INSEVIS panel PLC has been at home in so many series products for years as this module, which is only 95 mm deep and can accommodate up to 112 digital or 72 analog I/Os under the solidly manufactured rear panel. If that is not enough, there are enough interfaces for other external modules: Ethernet (S7 communication, TCP and UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optionally Profibus DP V0 master and slave. Not bad for the size, right? Of course, optionally with customer logo. On the back or in the firmware.

S7 panel PLC 7″ flat – without onboard peripherals

The new standard in 16:9 format with 800x480 pixel resolution and only 45mm thick. Decentralized field devices are connected via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into your customer's machine network and at the same time provide you with service access in a separate network. There are 2 device versions; one with and one without a Profinet IO controller. The brilliant touch displays can be used horizontally or vertically. There are no restrictions on visualization or remote access. A 4-way VNC server is already integrated.

S7 panel PLC 7″ flat – with fixed peripherals

INSEVIS shows how to bring 12 digital inputs or outputs, 12 counting inputs, 3 analog channels, each of which can be individually configured as an input or output and for current or voltage, and another 3 analog inputs, which can be almost anything, onto a 7" panel PLC with this panel PLC with a depth of just 44 (!) mm. Decentralized field devices are connected via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). The two separately configurable Ethernet interfaces enable integration into your customer's machine network and at the same time provide you with service access in a separate network.

S7 panel PLC 7″ for modular onboard peripherals

If you integrate 7 slots for onboard peripherals into the PC710T, you get the extremely compact PC717T panel PLC with a depth of 95mm. The 7 slots are sufficient for up to 112 digital or 70 analog inputs or outputs. The rest is addressed via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access in your own network. The obligatory 4-way VNC server is of course also onboard.

S7 panel PLC 10.1″ flat – without onboard peripherals

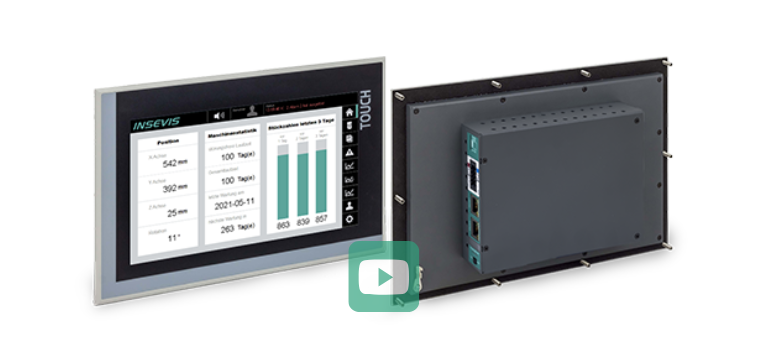

The S7 panel PLC PC1010T has a high-resolution, brilliant touch display with 1024×600 pixels and plenty of space for objects per page. Not unimportant at this size: no runtime license or PowerTag costs hinder the realization of your visualization ideas. There is also an integrated 4-way VNC server. Now in 2 device versions; one with and one without Profinet. Like all flat S7 panel PLCs, ideal for a solution with remote peripherals. The simplest peripheral connection is of course with INSEVIS peripherals, but all other third-party peripherals with Modbus TCP and RTU, CANopen, Ethernet or Profinet interfaces can also be easily mapped.

S7 panel PLC 10.1″ flat – with fixed peripherals

Wer kompakt bauen muss und nur wenige Ein- oder Ausgänge benötigt, ist mit dieser Baugruppe bestend bedient:  Die bekannte S7-Panel-SPS PC1010T mit ihrem hochauflösenden, brillanten Touchdisplay mit 1024×600 Pixeln und der starken T-CPU mit 2x Ethernet, Modbus-TCP und -RTU, RS232 und RS485 und natürlich die CANopen-Master-Schnittstelle beinhaltet bei der PC1011T rückseitig 12 digitale Ein- oder Ausgänge, 12 zählende Eingänge, 3 Analogkanäle, bei denen jeder Kanal als Ein- oder Ausgang und jeweils für Strom oder Spannung konfiguriert werden kann. Und dazu nochmal 3 Analogeingänge für Strom, Spannung, RTD, Thermoelemente und Dehnmesstreifen auf unglaublichen 48mm Bautiefe.

S7 panel PLC 10.1″ for modular onboard peripherals

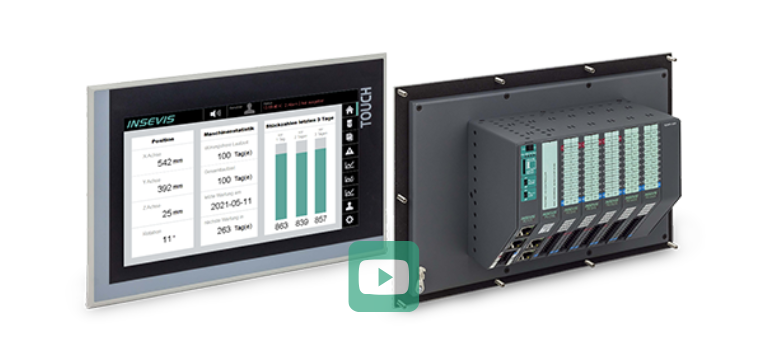

If you integrate 7 slots for onboard peripherals into the PC1010T, you get the extremely compact PC1017T panel PLC with a depth of 98mm. The 7 slots are sufficient for up to 112 digital or 70 analog I/Os. Often only a few I/Os are used for the onboard handheld controls. The rest are addressed via the onboard interfaces Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access.

S7 panel PLC 15.6″ flat – without onboard peripherals

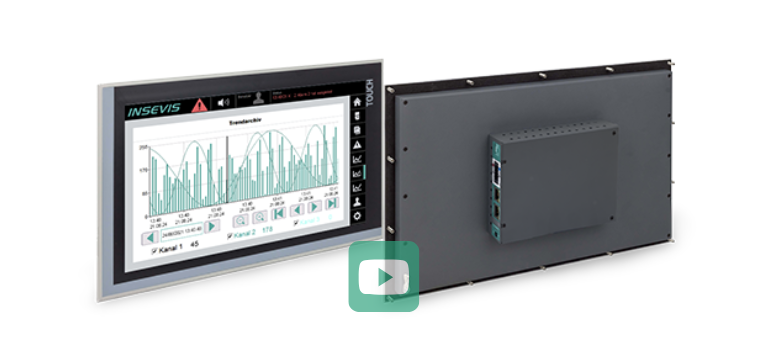

The PC1560T panel PLC has the largest diagonal currently available at 15.6" with 1366x768 pixels. Not unimportant at this size: With INSEVIS, no runtime license costs hinder the realization of your visualization ideas and the whole thing can be updated even after years, even without a PC as an aid. A 4-way VNC server is integrated. Like all flat panel PLCs, it is ideal for a solution with remote peripherals. The simplest peripheral connection is of course with INSEVIS peripherals, but all other third-party peripherals with Modbus, CAN, Ethernet or Profinet interfaces can also be easily mapped. If desired, with your own firmware with your logo permanently burned in - this will set you apart from your competition.

S7 panel PLC 15.6″ flat – with fixed peripherals

The PC1561T panel PLC expands the well-known PC1560T panel PLC with the fixed peripheral module already used in smaller devices with 12 digital inputs or outputs (switchable bit by bit and with PWM and push-pull functions), 12 digital inputs (counter with 1kHz/100kHz), 3 analog channels (each input or output and each for current or voltage) and 3 further analog inputs for current, voltage, RTD, thermocouples and strain gauges. The incredibly flat design of just 54mm allows many applications with particularly compact requirements.

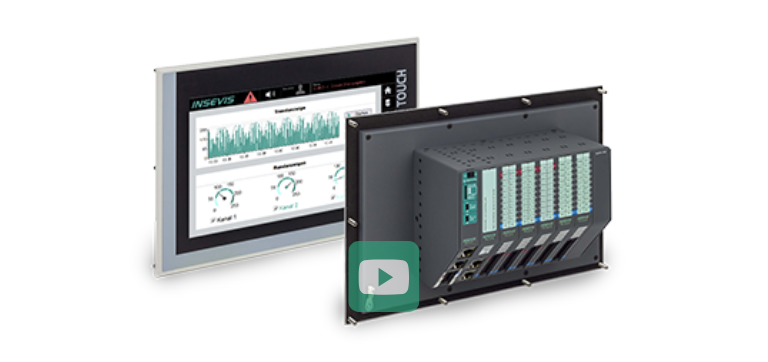

S7 panel PLC 15.6″ for modular onboard peripherals

If you integrate 7 slots for onboard peripherals into the PC1560T, you get the extremely compact PC1567T panel PLC with a depth of 104 mm. The 7 slots are sufficient for up to 112 digital or 70 analog I/Os, the rest is addressed via the onboard interfaces Modbus (TCP and RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Here too, the two separately configurable Ethernet interfaces enable the device to be integrated into your customer's machine network and at the same time provide you with service access. Labeling the firmware with the customer's logo is possible from a quantity of 1.
